EBADA
Rp 568.000,00
Package Dimensions:
Length: 37.00 cm
Width: 20.00 cm
Height: 13.00 cm

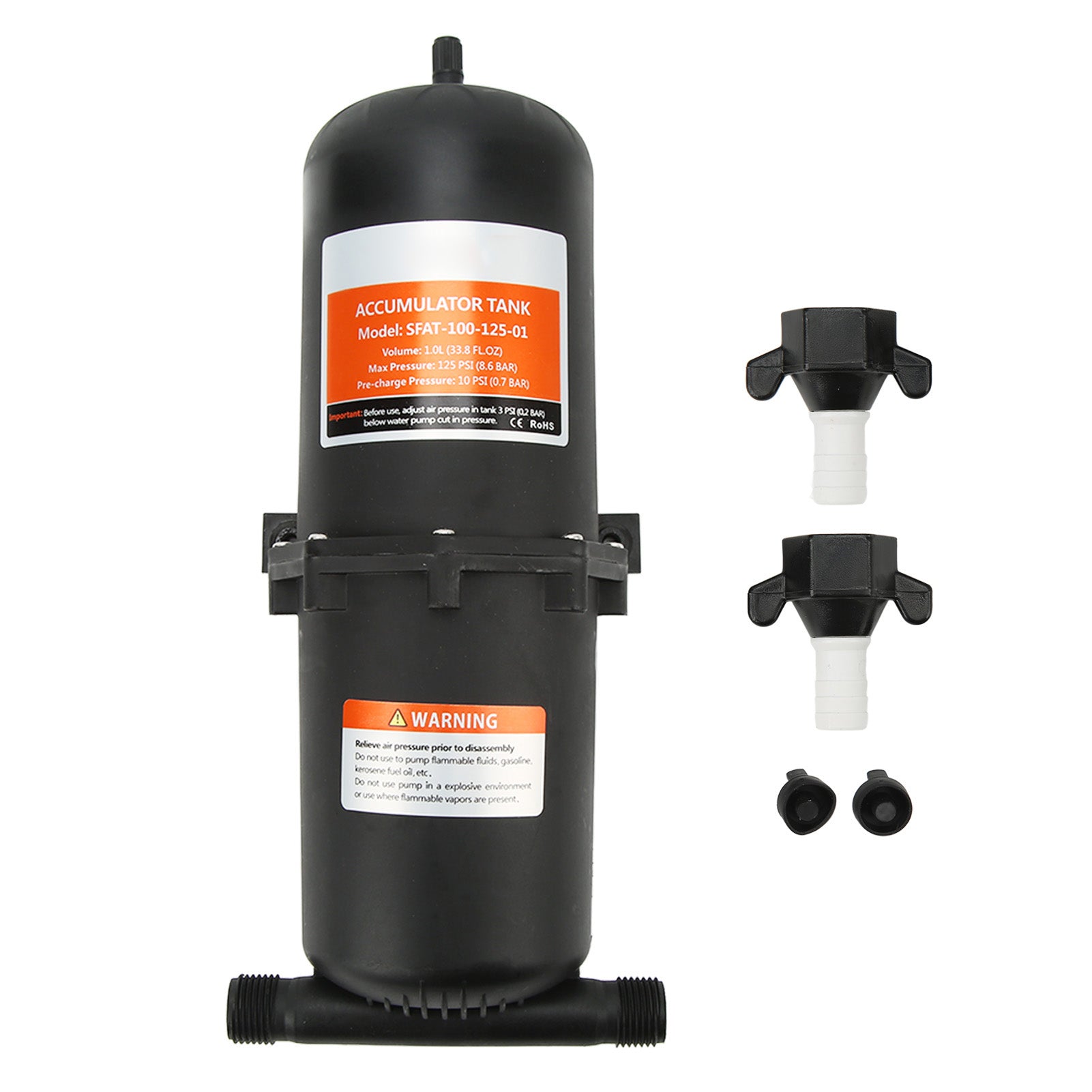

Item Type: RV Pressure Tank
Material: ABS, rubber, metal
Volume: 1L
Inflation Pressure: 10PSI/0.78BAR
Maximum Pressure: 125PSI/8.6BAR
Air Filling Door: Standard automatic tire valve
Inlet/Outlet Size: 1/2 inch external thread connection
Application: Widely used in ships, yachts, RV and other pressure stabilizing system
Installation:
Easy to install in any direction, and can be installed in any direction according to the size of space, simple operation
1. Disconnect the power to the pump and according to the size of the installation space
2. Open the faucet and install the pressure tank in series at the water outlet end of the pump in the direction of any installed pressure tank.
3. Fix the water pipe firmly at the inlet and outlet, if not fixed tightly, it may lead to leakage or equipment failure.
4. After installation and connection, start the pump, wait for the water to run through the whole system, water flows out from the terminal equipment, and exhaust the air from the whole piping system.
Safety Precautions.
1. Pre inflation pressure value of 10psi (0.7kg), pressure inside the pressure tank exceeds 125psi, may lead to tank explosion, resulting in personal injury.
2. The pressure inside the pressure tank is less than the pump start pressure value of 3-5psi, and the pump is the best match.
3. Use a pump with a pressure gauge through the valve at the back of the tank to adjust the pressure of the air inside the tank.
Working Principle of Pressure Tank
A. The factory has pre filled pressure for the tanks before leaving the factory
B. Turn on the pump, water into the pressure tank, when the pressure tank is filled, the pump stops working.
C. When water is needed, the water in the pressure tank enters the pipe first due to the air pressure in the liner. The water pump remains off until the pressure in the pressure tank is less than the starting pressure of the pump, the pump starts to work, and like this cycle.
1、Function: The pressure tank can effectively absorb excess heat entering the water system line due to the heater. 2、Performance: When the RV is used for a long time resulting in water leakage, the pressure tank can effectively reduce the frequent start of the pump. 3、Constant Pressure: Accumulator tank has a constant pressure, which prevents the system pressure from going up and down. 4、Strong Cushioning: The rubber liner has a strong seal and plays the role of pressure stabilization and buffering, making the water flow more smoothly. 5、Outstanding Features: Small and delicate, low noise, detachable, easy to carry, low power consumption and long service life.
1 x Pressure Tank
1 x User Manual
2 x Accessories
